Thermostatic Mixing Valves, 7 GPM

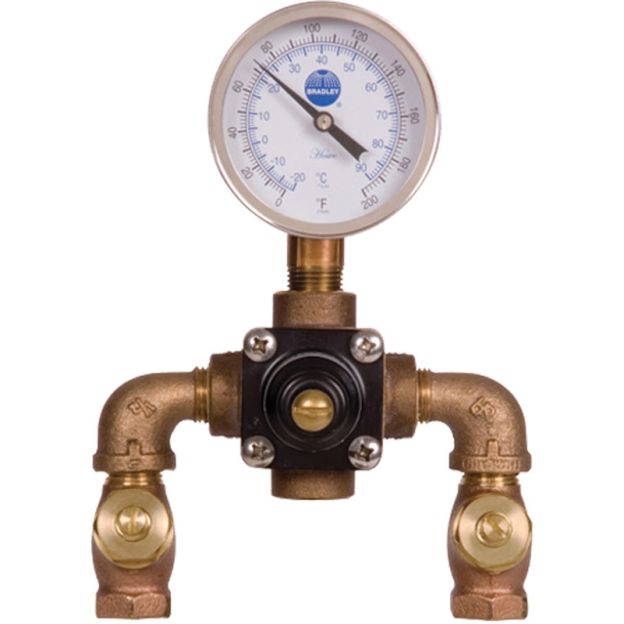

Thermostatic Mixing Valves – Provides tepid water for multiple or single eye/face wash stations, ANSI Z358.1-2009 compliant. Blends hot and cold water with adjustable temperature (65–90°F) and ±3°F accuracy. Features reliable liquid-filled thermostat, check stops, cold water bypass, positive hot shut-off, vandal-resistant adjustments, dial thermometer, and dirt- and lime-resistant construction. Factory assembled, SEI certified, 7 GPM, 125 PSI, rough bronze finish. 10-year warranty.
Free Shipping
Thermostatic Mixing Valves
Gallons Per Minute (GPM): 7 GPM
Maximum Operating Pressure (PSI): 125
Suitable For: Multiple Eyewash or Single Eye/Face Wash
Manufacturer's Warranty: 10 Years
Free Shipping
Designed to deliver tepid water to injured workers in accordance with ANSI standard Z358.1-2009
Blend hot and cold water to a comfortable flushing temperature
Reliable liquid-filled thermostat with a 10-year manufacturer's warranty
Check stops on inlets
Adjustable set point within temperature range of 65°F (18°C) to 90°F (32°C)
Accurate temperature control to within ±3°F
Temperature adjustment are vandal resistant
Built-in cold water bypass, assuring cold flow
Easy installation and serviceability;
Positive shut-off of hot supply when cold supply is lost
Dirt and lime resistant
Dial thermometer
Factory assembled and tested
Universal mounting capability
Rough bronze finish
SEI certified to ANSI standard Z358.1-2009
